Stationary concrete pumps represent the reliable backbone of medium to large-scale construction projects, offering consistent performance where mobile pumps cannot reach or lack the required output. These fixed-position workhorses bridge the critical gap between batching plants and placement areas, delivering concrete with precision and power that temporary solutions cannot match. Within the 30–80 m³/h capacity range, these stationary concrete pumps serve a diverse array of construction needs, from residential complexes to industrial facilities, each requiring specific performance characteristics tailored to project requirements.
Understanding the capabilities and limitations of stationary pumps requires appreciating the complex interplay between hydraulic power, pipeline configuration, and concrete mix design. The rated capacity represents only the beginning of the story—actual performance depends on numerous variables including vertical rise, horizontal distance, pipe diameter, and concrete consistency. This exploration delves beyond manufacturer specifications to reveal the practical realities of what these robust machines can achieve across different project types and site conditions.
Performance Capabilities and Limitations
Capacity Variations Across the 30–80 m³/h Spectrum
Real-World Output Considerations
Stationary pumps within this range demonstrate notable performance differentials based on their design and configuration. The 30-40 m³/h models typically achieve consistent outputs of 25-35 m³/h under standard conditions, while 60-80 m³/h units maintain 50-70 m³/h when properly optimized. This variance stems from multiple factors including hydraulic system efficiency, valve design, and the concrete’s pumpability characteristics, which collectively influence the actual versus theoretical output ratio.
Distance and Height Parameters
The relationship between capacity and achievable distance follows a predictable degradation curve that operators must understand for proper project planning. A 50 m³/h concrete trailer pump for sale might maintain 45 m³/h at 100 meters horizontal distance but only 35 m³/h at 300 meters. Vertical pumping introduces even greater capacity reduction, with each meter of height typically decreasing output by 0.5-0.8 m³/h depending on concrete mix characteristics and pipeline configuration.
Project Suitability Analysis
Ideal Applications for Different Capacity Ranges

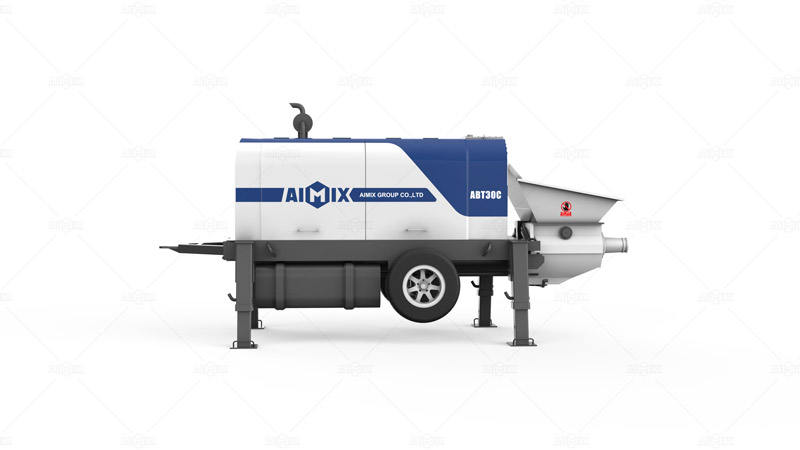

30-50 m³/h Pump Applications
These medium-capacity units excel in mid-rise residential projects and commercial buildings typically ranging from 5-15 stories. Their output matches the concrete placement rates required for most slab pours, columns, and walls in these structures. The reduced capacity often corresponds with lower power consumption and easier maintenance, making them economically advantageous for projects with moderate concrete demands.

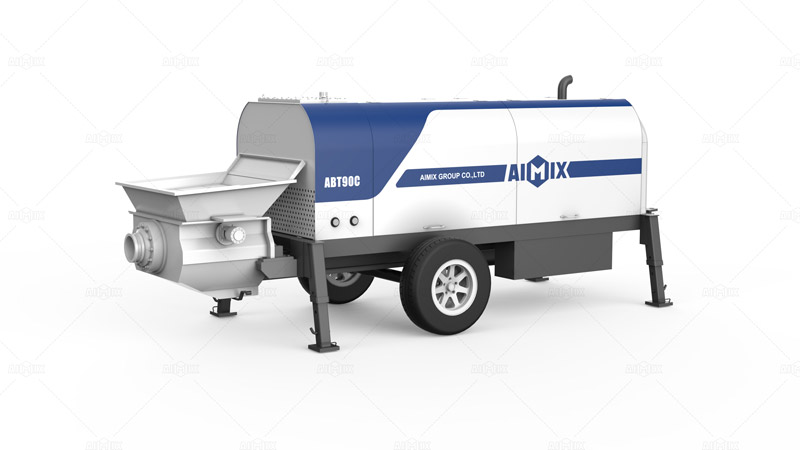

60-80 m³/h Pump Applications
High-capacity pumps prove indispensable for large-scale industrial projects and infrastructure development where time-sensitive pours demand rapid placement. These include power plants, manufacturing facilities, and bridge decks where continuous concrete supply prevents cold joints and ensures structural integrity. Their increased output justifies the higher operational costs through reduced placement time and improved labor efficiency.
System Configuration and Optimization
Pipeline Design and Layout Strategies
Diameter Selection and Layout Efficiency
Optimal pipeline configuration significantly influences pumping efficiency and output consistency. Most stationary concrete pumps South Africa in this capacity range utilize 125mm or 150mm pipelines, with larger diameters generally supporting higher outputs over longer distances. The layout must minimize unnecessary bends and utilize long-radius elbows where direction changes are unavoidable, as each 90-degree bend reduces effective pumping distance by 8-12 meters of equivalent straight pipe.
Pressure Management Techniques
Modern stationary pumps incorporate sophisticated pressure monitoring systems that automatically adjust pumping parameters to maintain optimal flow rates. These systems detect increasing resistance and respond by reducing stroke rate or pressure to prevent blockages, then gradually restoring full operation once conditions normalize. This intelligent response to pipeline conditions significantly enhances both output consistency and equipment longevity.
Economic and Operational Considerations
Cost-Benefit Analysis for Project Selection
Ownership Versus Rental Decisions
The economic logic for stationary pump acquisition involves careful total cost of ownership calculations compared to rental alternatives. Higher-capacity models (60-80 m³/h) typically justify ownership through frequent use on large projects, while medium-capacity units (30-50 m³/h) often prove more economical through rental arrangements for intermittent needs. Maintenance costs, transportation expenses, and storage requirements must all factor into this decision matrix.
Operational Efficiency Metrics
Evaluating pump performance extends beyond mere output capacity to include energy consumption per cubic meter and operational reliability metrics. Modern electronic monitoring systems track these key performance indicators, allowing contractors to compare different types of concrete pumps based on actual operating data rather than manufacturer specifications. This data-driven approach ensures equipment selection aligns with both project requirements and long-term operational economy.
Stationary concrete pumps between 30–80 m³/h represent sophisticated solutions whose value extends far beyond their basic capacity specifications. The optimal pump for any project emerges from careful consideration of multiple factors including required output, achievable distance, concrete characteristics, and economic constraints. By understanding these variables and how they interact, contractors can select equipment that not only meets immediate project needs but also contributes to overall operational efficiency and profitability. The true measure of these machines lies in their ability to deliver reliable, consistent performance under the demanding conditions of modern construction sites.
